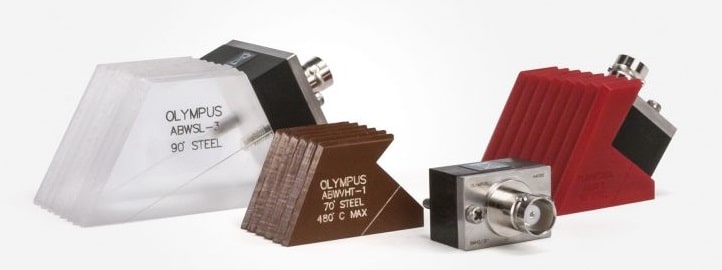

  • Olympus AWS Transducers and Wedges

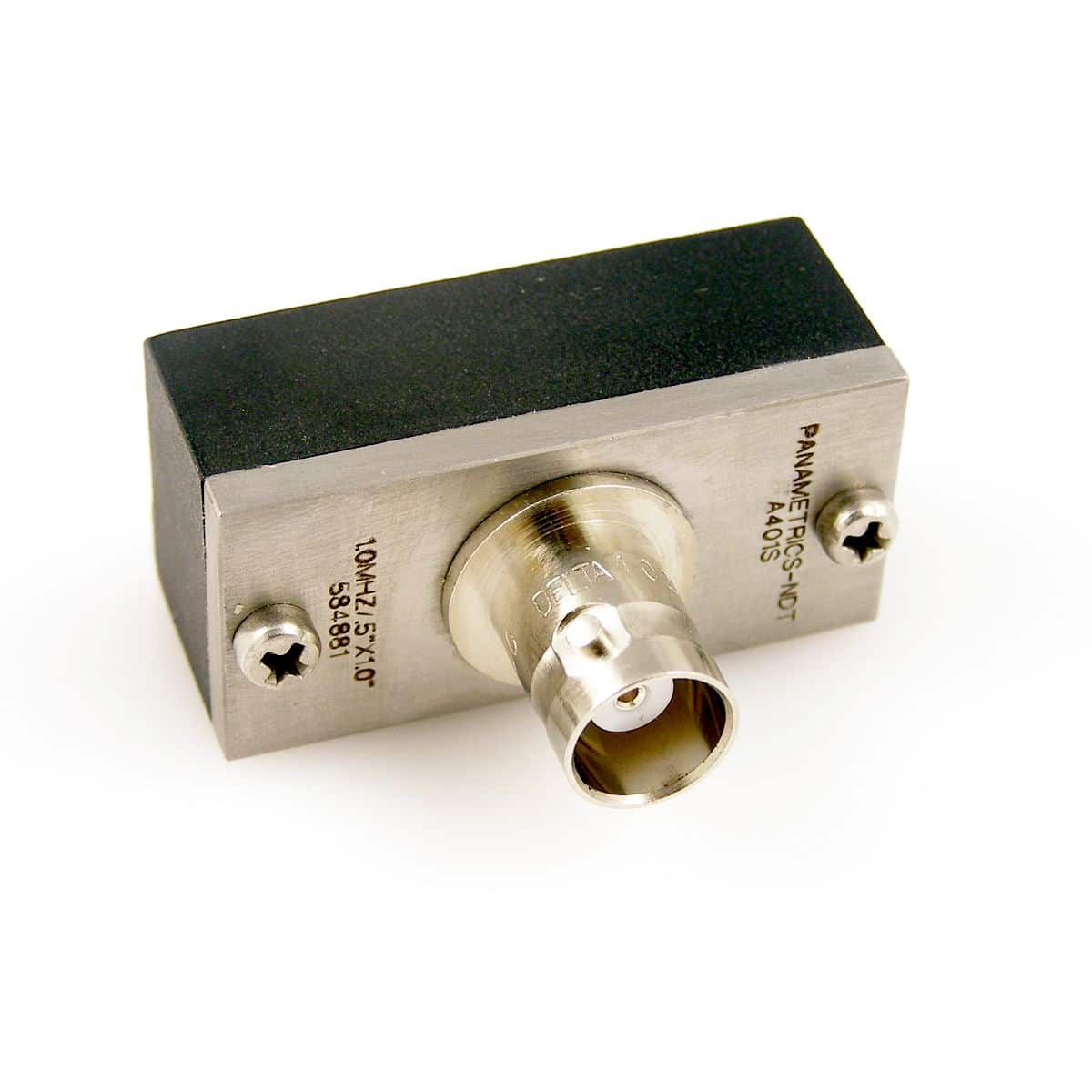

  • Olympus AWS Transducer (A401-SM shwon)

    • Olympus AWS Transducers and Wedges

    Print

    Evident Olympus

    |

    26100

    Angles

    Dovs

    Models

    Nominal-element-sizes

    Request for information

    Olympus AWS Transducers and Wedges

    AWS transducers and wedges conform to the specific requirements of the American Welding Society's Structural Welding Code for angle beam assemblies used in weld inspection. Contact us to discuss your application, requirements, available options and/or receive a quote.

    AWS Transducers and Wedges

    Nominal Element Size Frequency   Transducer Part No. Snail Wedge Part No. Accupath Wedge Part No.
      MHz ACCUSCAN CENTRASCAN
    0.625" x 0.625" 2.25 A430S-SB C430-SB ABWS-8-X° ABWS-6-X°
    0.625" x 0.75" 2.25 A431S-SB C431-SB ABWS-8-X° ABWS-6-X°
    0.75" x 0.75" 2.25 A432S-SB C432-SB ABWS-8-X° ABWS-6-X°

    *Wedges are available in 456, 60 and 70 degrees for steel models. *Accupath wedges are marked with five line graticule to assist in locating the beam exit point.

    Request for information on this product
