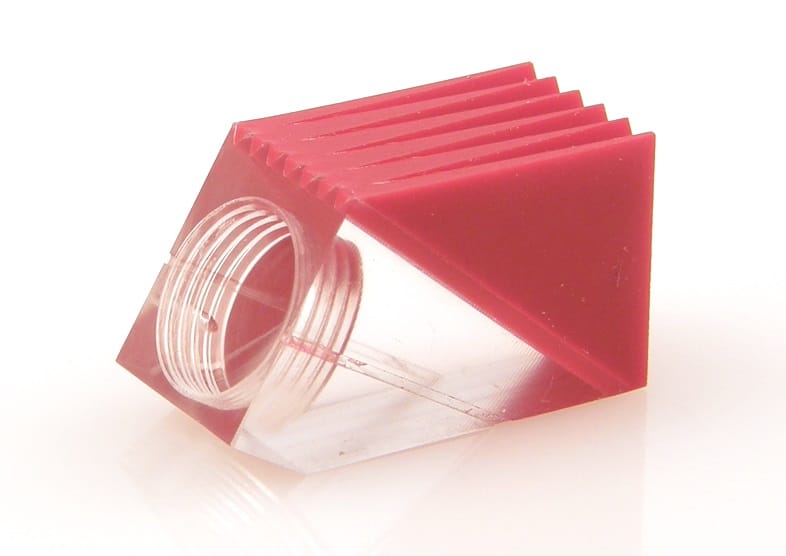

  • Olympus Angle Beam Wedge. Screw-In type (ASBA-4T-70 shown)

    • Olympus Angle Beam Transducers and Wedges

    Print

    Evident Olympus

    |

    25544

    Sabots

    Transducers

    Request for information

    Olympus Angle Beam Transducers and Wedges

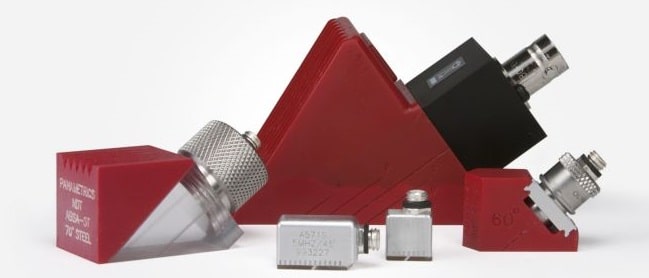

      Angle beam transducers for weld inspection. They are single element transducers and are used with a wedge to introduce a refracted shear wave or longitudinal wave into a test piece and for time-of-flight diffraction. We offer different wedge styles depending on your needs.   Click the catalog for more information. Contact us to discuss your application, requirements, available options and/or receive a quote.

    Screw-In Transducers - Nominal Element Size and Frequency (MHz) - Accuscan-S listed below

    Nominal Element Size 1 MHz 1.5 MHz 2.25 MHz 3.5 MHz 5 MHz 10 MHz
    0.25" (6mm) - - A542S-SM A546S-SM A543S-SM A544S-SM
    0.5" (13mm) A539S-SM - A540S-SM A545S-SM A541S-SM A547S-SM
    0.375" (10mm) - A548S-SM A549S-SM A550S-SM A551S-SM A552S-SM

    Wedges - Miniature short approach screw-in - Standard and Very High Temperatures

    Nominal Element Size Standard 45° Standard 60° Standard 70° Surface Wave 90° High Temp 30° High Temp 45° High Temp 60° High Temp 70°
    0.25" (6mm) ABSA-4T-45 ABSA-4T-60 ABSA-4T-70 ABWML-4T-90 ABWHT-4T-30 ABWHT-4T-45 ABWHT-4T-60 ABWHT-4T-70
    0.5" (13mm) ABSA-5T-45 ABSA-5T-60 ABSA-5T-70 ABWML-5T-90 ABWHT-5T-30 ABWHT-5T-45 ABWHT-5T-60 ABWHT-5T-70
    0.375" (10mm) ABSA-7T-45 ABSA-7T-60 ABSA-7T-70 ABWML-7T-90 ABWHT-7T-30 ABWHT-7T-45 ABWHT-7T-60 ABWHT-7T-70
