X-RIS GemX Battery-Powered X-ray Tube

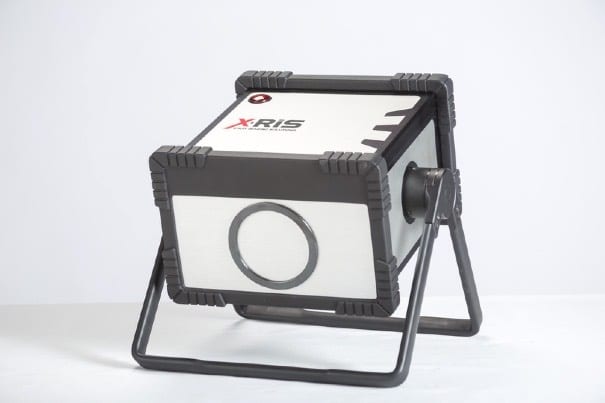

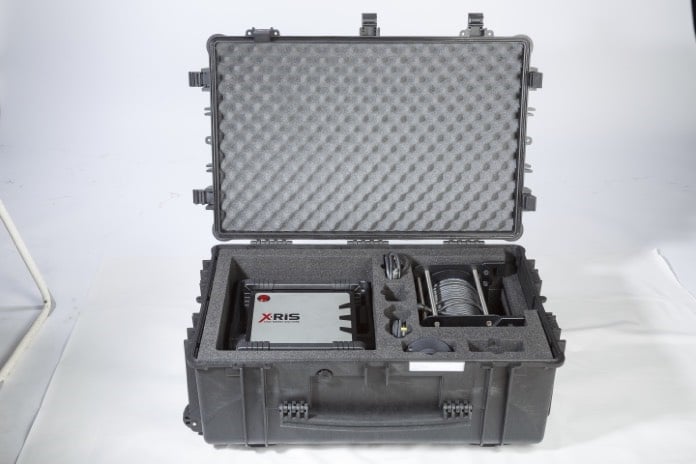

This portable constant potential X-ray generator from X-RIS is optimized for digital radiography, having an adjustable kV and mA and a very small focus spot of 200µm and a beam angle of 45 x 45 degrees. Standard kit includes: GemX portable battery powered X-ray tube with 1/3 duty cycle, built-in LiPo rechargeable batterie (60 minutes X-ray at full power), 100-246VAC, 50-60Hz battery charger, 26 to 54VDC power supply, wireless controller (Bluetooth V 4.0, up to 80m) or wired ethernet controls, and 360 degrees handle for easy X-ray beam direction. Delivered with user software, user manual, flashing light and buzzer, tripod, laser centering device, compliance certificate, focal spot measurement certificate, and rugged transport case. Options:

GemX-150: 50-150kV, 0.1 to 2.0mA, 150W, 200µm focal spot.
GemX-160: 50-160kV, 0.1 to 2.0mA, 160W, 500x700µm focal spot.
GemX-200: 50-200kV, 0.1 to 2.0mA, 200W, 500x700µm focal spot.

Contact us for more information, or to receive a quote.
