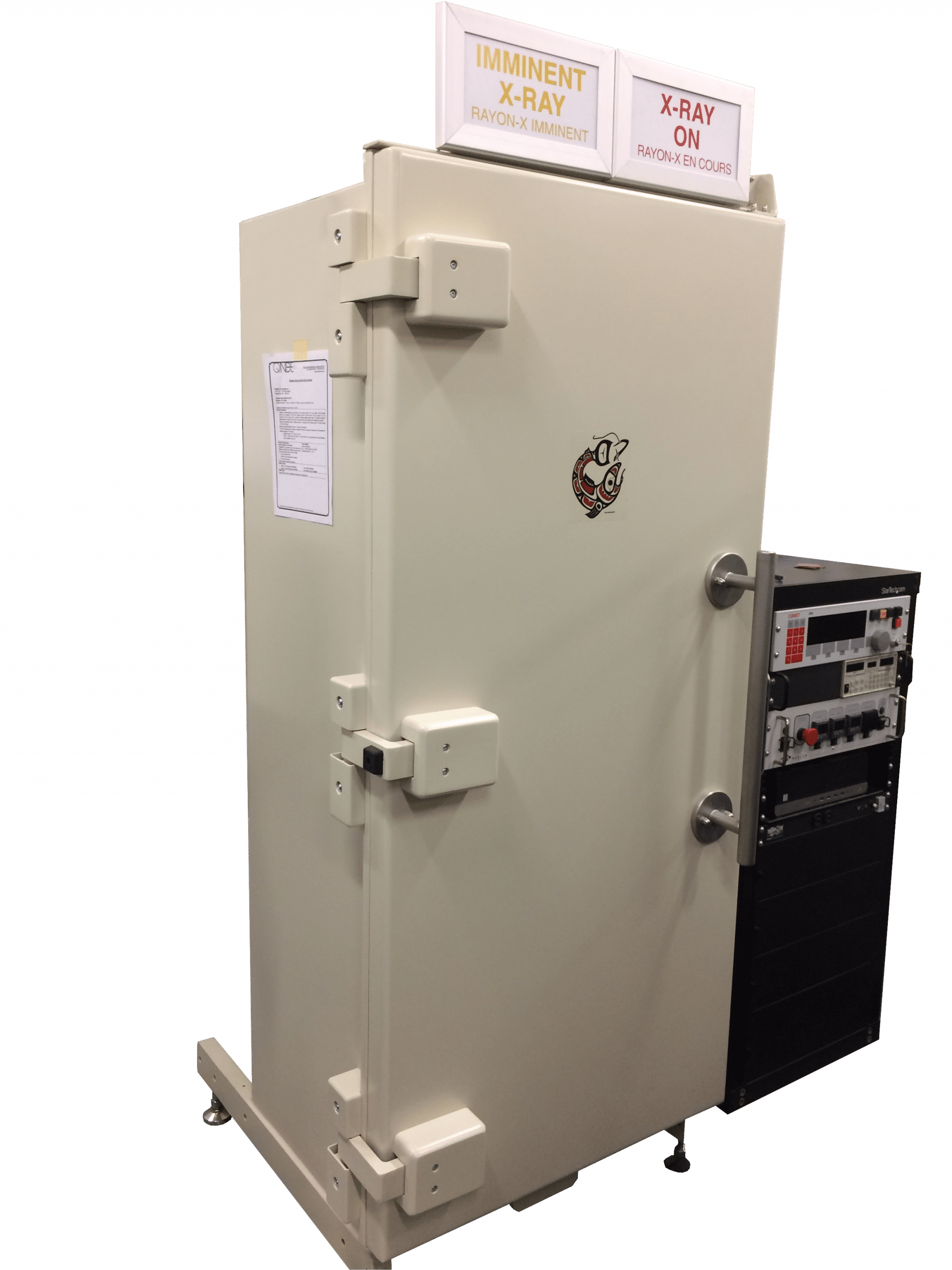

QNDE Industrial Fridge Design CUSTOM X-Ray Cabinet

Lead-lined enclosure cabinet with interlocks and signs – Medical grade finish

External dimensions: 852mm wide x 921mm deep x 2114mm total height.
Internal dimensions 710mm width x 533mm depth (door closed) x 1650mm height.
- Adjustable legs for leveling.
- Approximate weight, 1460 kg (3,200 lb).

Steel / lead / steel construction (customer to select color).
Hinged baffle for high-voltage cable, so the preventive maintenance is simple.
Two ventilation port holes and baffles to fit a 100 mm duct.
Full access hinged front loading door, lockable with industrial-style latch (opening to the left).
Health and safety components (per international requirements):
- Door safety switch with dual low voltage contacts (level 4 security).
- LED Illuminated red warning sign "X-RAY ON", single faced.
- LED Illuminated yellow warning sign "IMMINENT X-RAY", single face.

Radiation Leakage Survey Certificate.
Health and Safety CODE 34 certification.

Custom lead cabinet can be built to your specific dimensions and needs. Dimensional drawings will be supplied for your approval prior to manufacturing.
