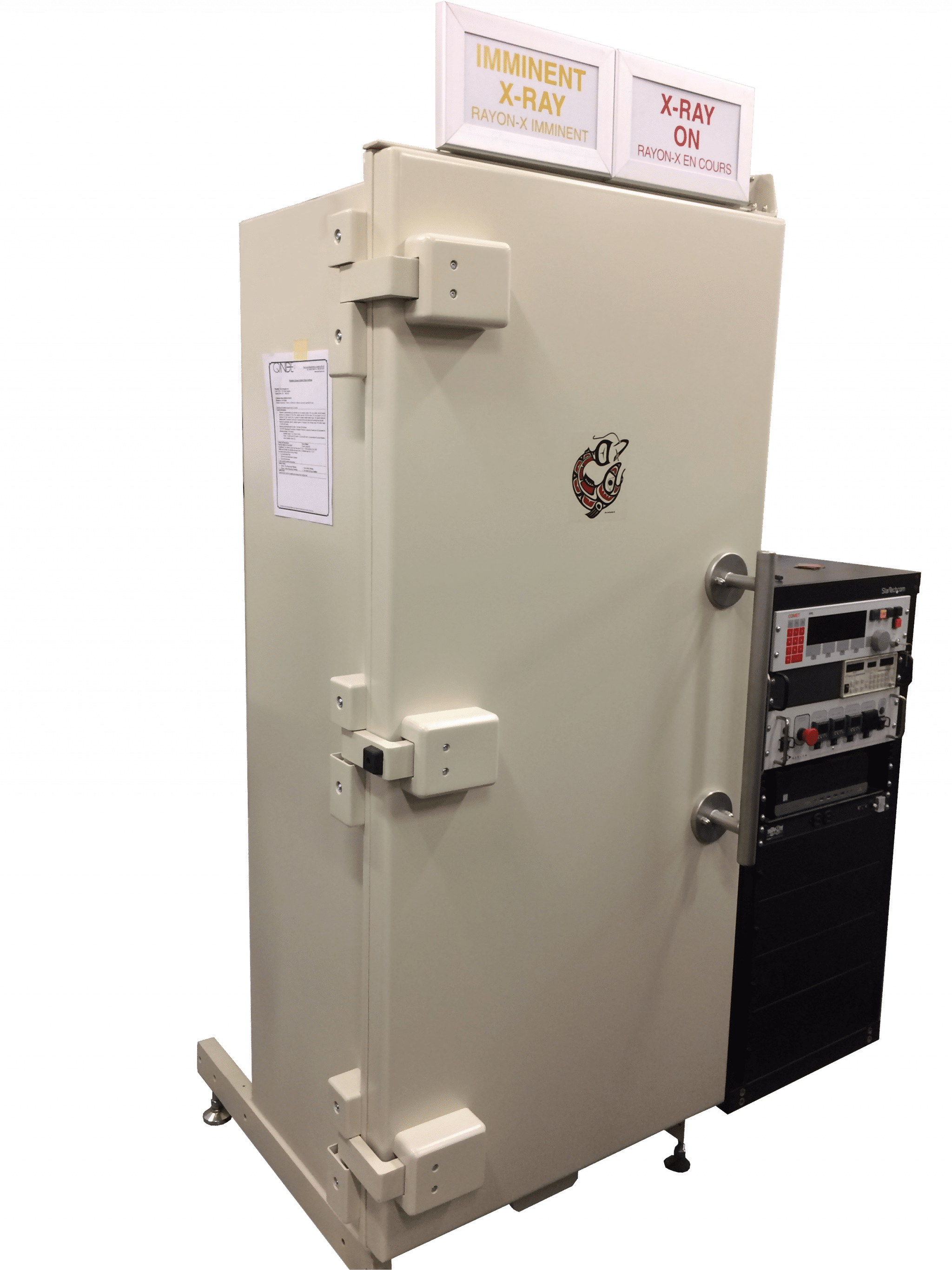

QNDE Industrial Fridge Design CUSTOM X-Ray Cabinet

Lead-lined enclosure cabinet with interlocks and signs – Medical grade finish
  • External dimensions: 852mm wide x 921mm deep x 2114mm total height.
  • Internal dimensions 710mm width x 533mm depth (door closed) x 1650mm height.
    • Adjustable legs for leveling.
    • Approximate weight, 1460 kg (3,200 lb).
  • Steel / lead / steel construction (customer to select color).
  • Hinged baffle for high-voltage cable, so the preventive maintenance is simple.
  • Two ventilation port holes and baffles to fit a 100 mm duct.
  • Full access hinged front loading door, lockable with industrial-style latch (opening to the left).
  • Health and safety components (per international requirements):
    • Door safety switch with dual low voltage contacts (level 4 security).
    • LED Illuminated red warning sign "X-RAY ON", single faced.
    • LED Illuminated yellow warning sign "IMMINENT X-RAY", single face.
  • Radiation Leakage Survey Certificate.
  • Health and Safety CODE 34 certification.
  Custom lead cabinet can be built to your specific dimensions and needs. Dimensional drawings will be supplied for your approval prior to manufacturing.
