    Vehicle Monitoring – Radcomm RC-4000 Series

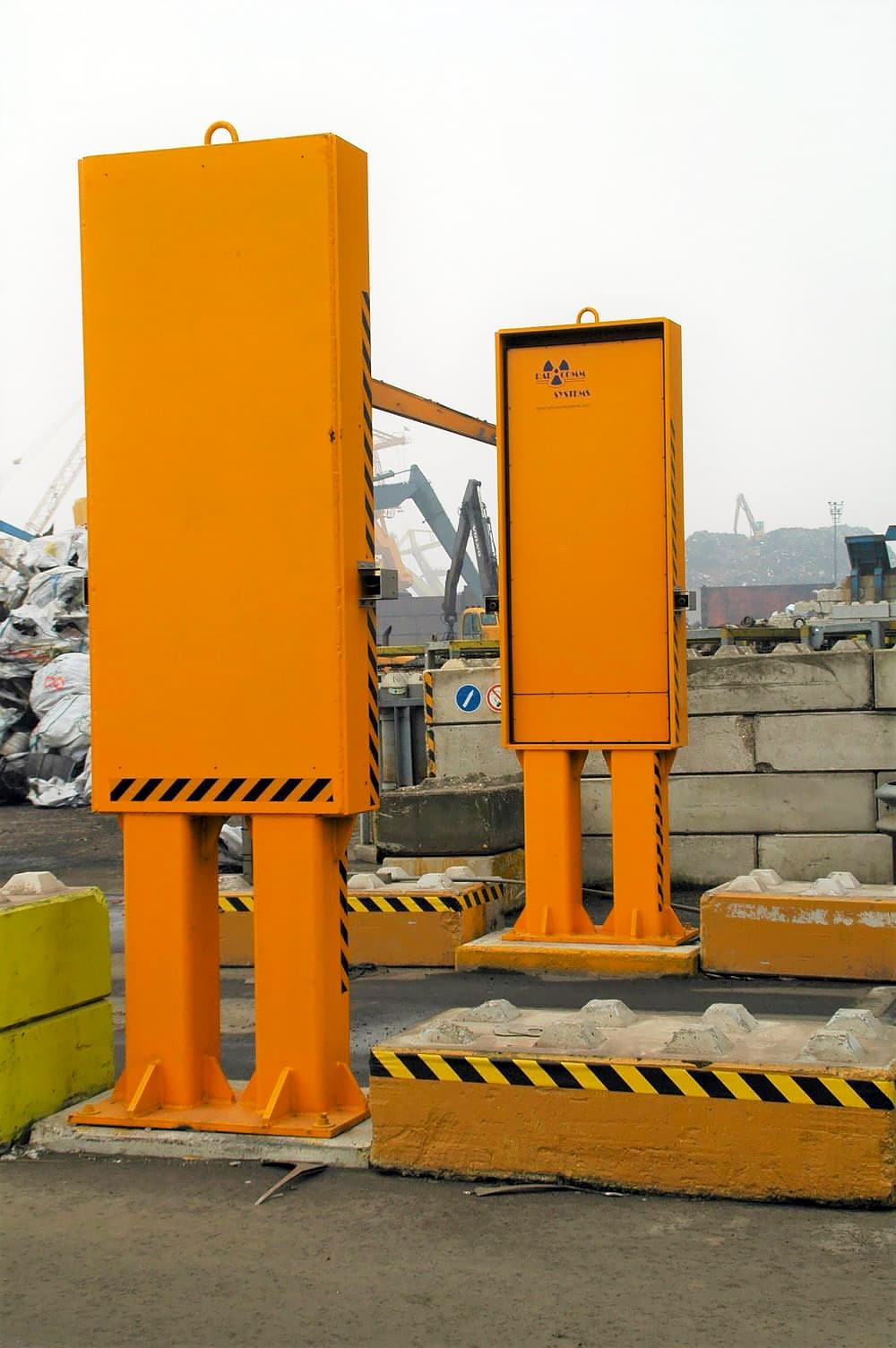

    System designed to detect radioactive materials contained in a moving vehicle loaded with dense material (metal recycling). The complete system consists of detectors (1 to 8 panels), infrared sensors, Windows-based controller, large touch-screen monitor, printer and all required drawings (installation, concrete base, electrical).
    • Compliant to ANSI N42.35 / IEC 62244, ANSI N42.42 / IEC 62755.
    • Energy range: 20 KeV to 3.0 MeV.
    • Large premium PVT scintillators (2108 to 4216 in3 (34.5 to 69 L) in volume) with two PMT.
    • Software with detailed alarm information (positioning); data storage (alarms and clean); remote calibration, service and monitoring; multi-level security password control and multiple languages.
    • Email ready for sending alarms and errors.
    • Maximum speed: 20 km/h.
     OPTIONS
    • Installation and training.
    • Detector supports (single or double legs) with or without bollards.
    • Neutron detector (He3 or alternative).
    • Wireless package.
    • External alarms (light and/or buzzer).
    • Supervisory software for remote monitoring (one or multiple portals).

      • RC4138-2: Two 4216 in3 (69L) PVT detectors system. Detection capability/sensitivity of 1.1 microCurie Cs137 (unshielded point source) at 1 meter.
      • RC4110-2: Two 2632 in3 (45.5L) PVT detectors system. Detection capability/sensitivity of 1.4 microCurie Cs137 (unshielded point source) at 1 meter.
      • RC4069-2: Two 2108 in3 (34.5L) PVT detectors system. Detection capability/sensitivity of 1.6 microCurie Cs137 (unshielded point source) at 1 meter.
