Discovery III Portable System with 10BN, Bendable Detectors

Print

Novo

This product is currently unavailable.

Request for information

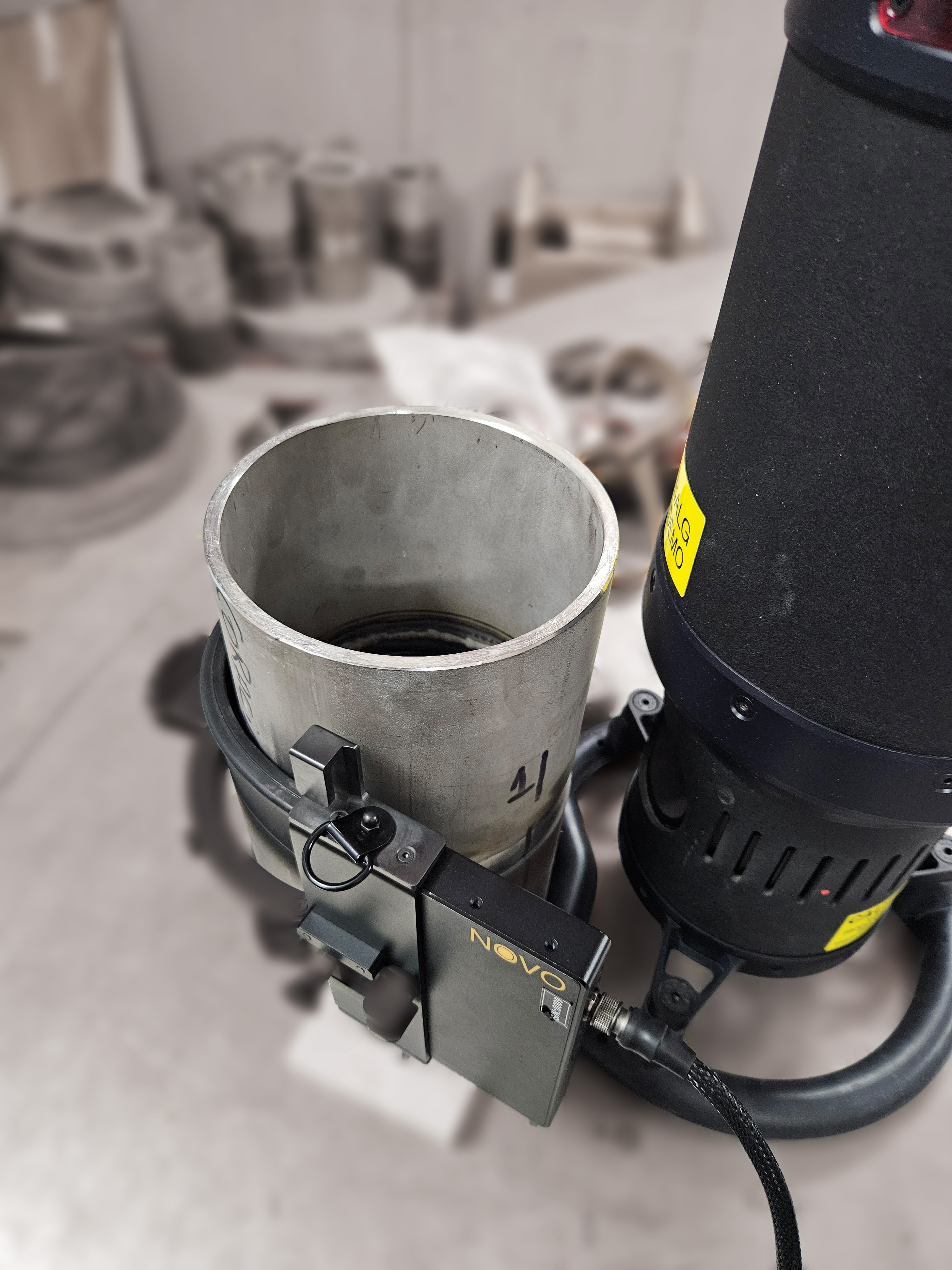

Portable 10 inch bendable detector, going from flat to 6” bent radius. The complete system is IP67 (water resistant) with a WiFi range of 1.8 miles (3000m). Choice of three sun-readable touch tablets (1500 NIT) XL (21.5”), L (17”) or S (10"). 2-year warranty. Kit includes:

NOVO 10BN bendable DDA Panel with battery (3.1lb (1.4kg).

Imagine area: 9.8” X 3.8” (227mm X 98mm) on both sides of the detector. Minimum pipe diameter 6” (150mm). 99 microns, high resolution panel.

Ranger 3 WiFi, range of 3000m.
Soft Protective Cover with Two holding straps.
NOVO Touch Professional Software:
- Remote control for various X-ray tubes (Golden, Teledyne, Comet, GE, etc.)
- Tools such as Report, Real dimension measurement, Wall thickness measurement, Double wall thickness measurement, Image stitching, Calibration tool (SRb, SNR, etc.)
- DICONDE.
NOVO Bright Tablet (Military standard).
Rigid Pelican Transport Case with integrated power and communication HUB 3 Type C. 120-240VAC. 50-60 Hz.
All connectors are military certified (MIL-DTL 38999).
2-year warranty

D3-10BN-21T: DISCOVERY III 10BN Bendable DDA complete portable system with 21” tablet. D3-10BN-17T: DISCOVERY III 10BN Bendable DDA complete portable system with 17” tablet. D3-10BN-10T: DISCOVERY III 10BN Bendable DDA complete portable system with 10” tablet. 10BN: Chaser 10BN, spare 10 inch bendable DDA panel 18BN: Chaser 18BN, spare 18 inch bendable DDA panel Contact us for a demo or to discuss your application, requirements, available options and/or receive a quote.
